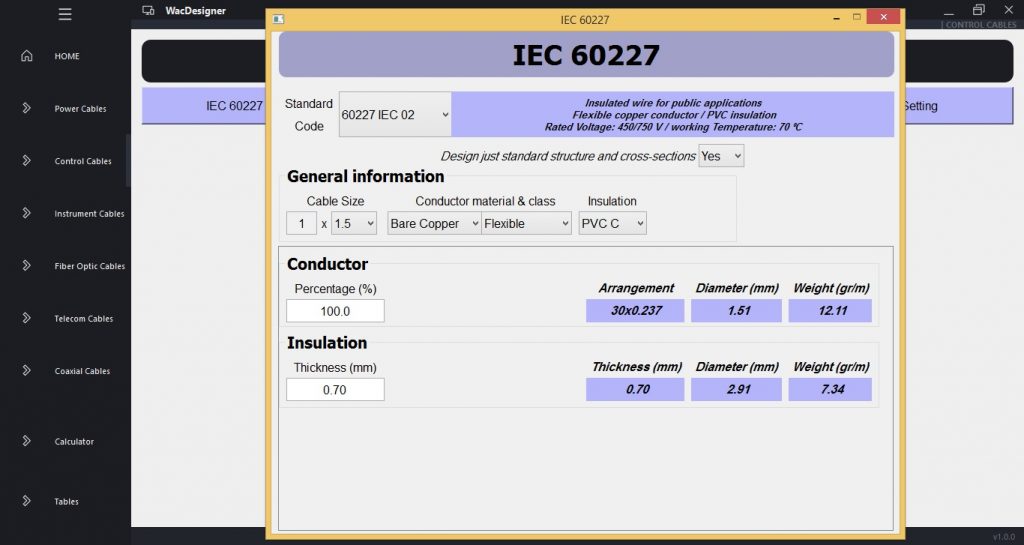

In this section of the software, you can fast and easily design your wire and control cable according to IEC 60227. Same as other standards, there are some boxes for cable size and layers above the scroll and some auto calculated information inside the scroll.
To use this section, first of all, choose the standard code 01 ~ 75. There is a summarized description for each code. Based on the selected code for wire, shielded or unshielded round cable or flat cable, enter the cable size and structure including conductor class and material, insulation and jacket material and formation (Round or Flat Cable).
All cable dimensions and weight will be calculated according to the related standard and will be shown inside the scroll. All parameters can be modified manually in the left side of the scroll, and all parameters will be recalculated and shown in the right side of the scroll.
