In this section of the software, you can easily and fast design all type of optical cable according to TCI. To design optical cable using this software, just click on the standard tab to run optical cable window.

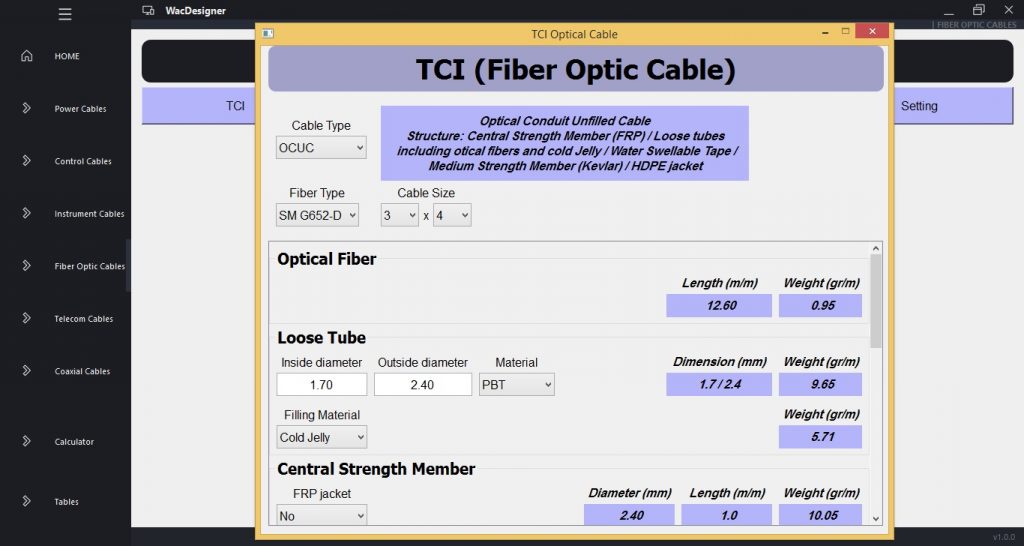

Standard Section:
First, chose cable type from the box of cable type. Then, enter cable size and fiber type. All cable parameters will be calculated according to TCI and shown inside scroll. you can change any parameters of the cable in the left side of the scroll. Then all cable dimensions and material weights will be recalculated.

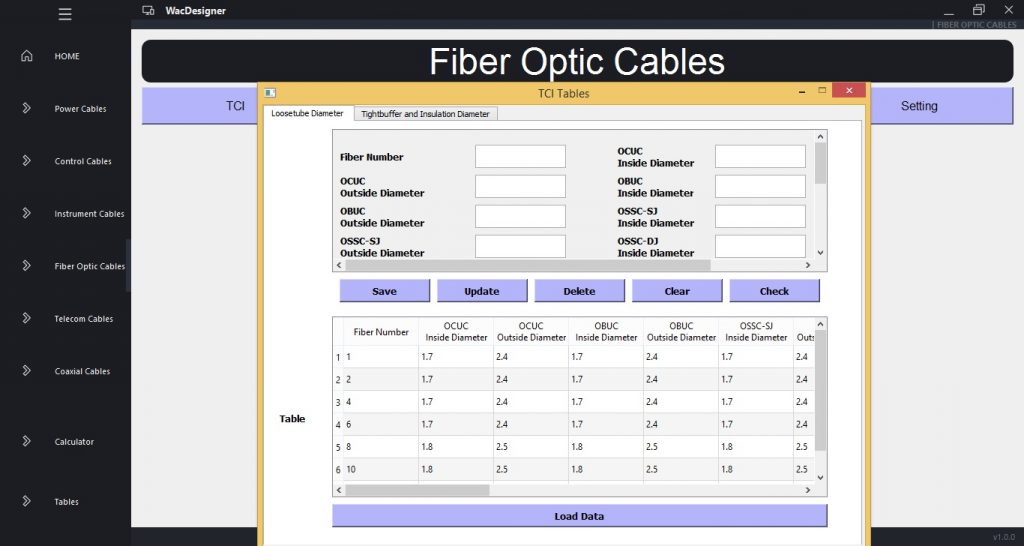

Setting Section:
By clicking on setting, a setting window will be run. There are some tabs to modify tables. First, in the above section, enter an ID number of the table and press check to see details. Then you can change details and then update information. Also, you can enter a new ID and save details on the table or delete a row. In the above section all parameters can be changed, and in the below section you can just see the Table.
