Coaxial Cables

In this section of WacDesigner, you can fast and easily design coaxial cable according to JIS C 3501 or MIL-C-17 or your personal table. Same as other standards, there are some boxes for cable size and standard above the scroll and some auto calculated information inside the scroll.

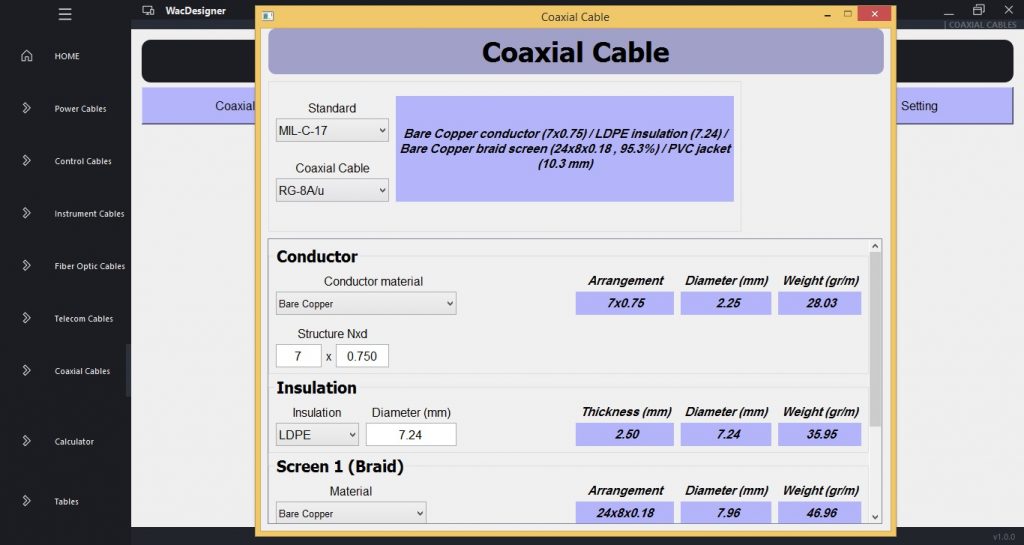

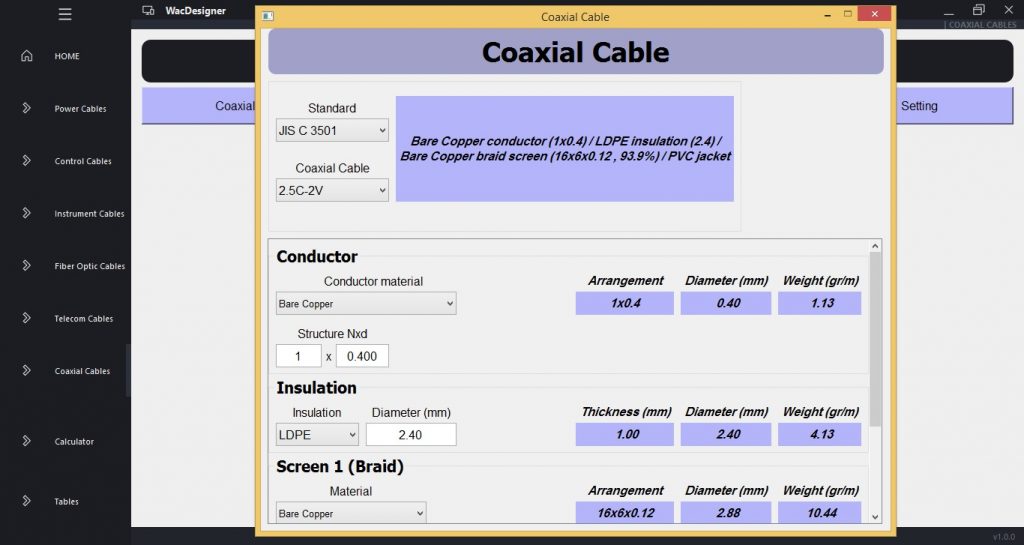

Standard Section:

Above the scroll chose standard category and then cable size. A summarized information about the cable will be shown in front of the cable size and standard.

All cable layers dimensions and weight will be automatically calculated and shown inside the scroll.

All cable parameters can be changed. by changing in any of layers, all layers weights and dimensions will be recalculated and shown inside scroll.

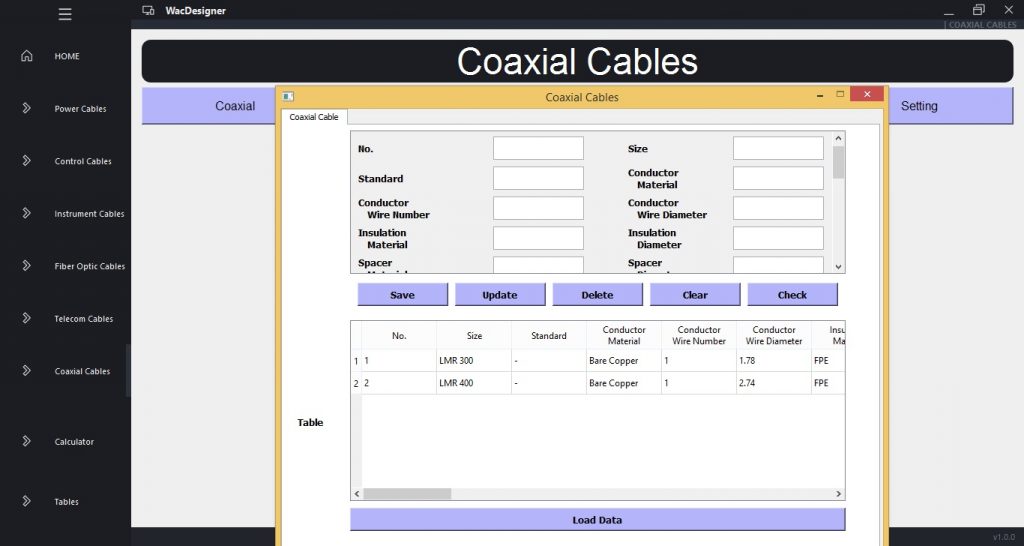

Setting Section:

By clicking on setting, a setting window will be run. There is a table for complete design of a new coaxial cable. First, in the above section, enter an ID number of the table and press check to see details. Then you can change details and then update information. Also, you can enter a new ID and save details on the table or delete a row. In the above section all parameters can be changed, and in the below section you can just see the Table.
